| Heater Length | 5 in 6 in 8 in |
| Heater Width | 12 in 9 in |
| Heater Depth | 11.5 in 15.5 in 5.75 in |
| Voltage | 110/120 VAC 208/220 VAC 240 VAC 440 VAC 450 VAC 460 VAC 480 VAC |
| Phase | 1 PH 3 PH |
| Amt. of Element | 3 6 12 18 |
| Wattage | 0.3 kW 0.9 kW 1.2 kW 1.5 kW 5.0 kW |
| Construction | 18 GA 302/304 Stainless Steel Fins Furnace Brazed to Sheath Flange 1.0 inch with Holes Gasketed for Weather-Proofness Hermetically Sealed Elements SST Heating Elements |
| Unit Includes | Air Flow Switch Auto & Manual Hi-Limit Thermostat Plunger disconnect fused Power Terminal Block Term Block for Remote Thermostat |
| Suggested Applications | Commercial |
| Certifications | ETL-ANSI/UL 1996 I/A/W USCG IEEE 45 |
| BTU | 1024-17061 Btu |
| Downloads |  |
Skip To Content

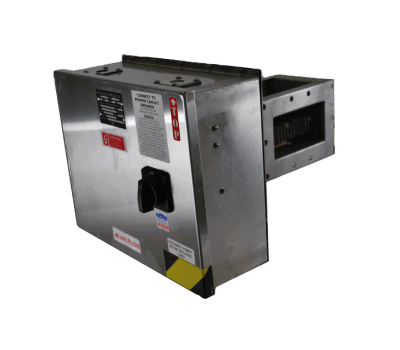

Commercial Standards Ventilation Duct Heaters
![Commercial Standards Ventilation Duct Heaters](/wp-content/uploads/VENT-DUCT-HEATER_SINGLE-STAGE.png" "Commercial Standards Ventilation Duct Heaters")
Valad has manufactured Vent Duct Heaters for 60 years. Our specialty is marine and customized commercial applications. Valad uses the highest grade materials to assure our customers of the finest quality product. We carry a large inventory of Vent Duct Heaters in order to keep lead time to a minimum. Valad manufactures custom sizes to meet individual applications and our engineering staff will assist in your needs, regardless of quantity.
Vent Duct Heaters are manufactured per USCG, IEEE 45 Navy and UL guidelines. Valad’s Vent Duct Heaters are aboard the USS New Jersey and other naval vessels.
Unit is manufactured I/A/W USCG, IEEE45 and ETL-ANSI/UL 1996 approved.
Specifications
