Convection Heaters
Valad’s Convection Heaters are manufactured in the USA from the highest quality materials and meet military, marine and industrial specifications. These heaters use natural convection to produce heated air to warm up an area.
Cabinet: 304 Stainless Steel, IP20(standard).
Heating Element: Stainless steel flat oval tubular design. Finns are furnace brazed to sheath. Element is hermetically sealed.
Electrical Specifications: Units are manufactured to guide lines of USCG, IEEE45, IAW ETL/UL-2021 standards.
| Item # | Item Name | Voltage | Wattage | Phase | Weight | BTU | Downloads |
|---|---|---|---|---|---|---|---|
| DFMMS | DFMMS Fixed Bulkhead Mounted Heater | 110-220 VAC | 0.1-0.5 kW | 1 PH | 7.5 lb | 341-1706 Btu |  |
| DFMM | DFMM Fixed Bulkhead Mounted Heater | 110-220 VAC | 0.1-0.75 kW | 1 PH | 8 lb | 341-2559 Btu | |

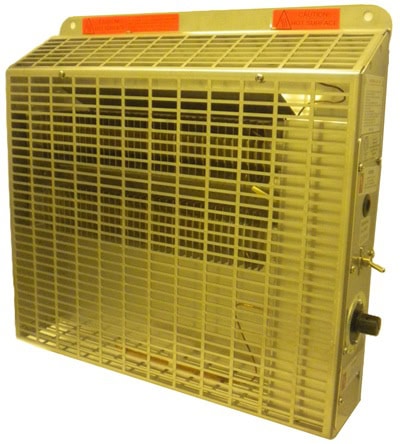

| DFM | DFM Fixed Bulkhead Mounted Heater | 110-220 VAC | 0.1-1.5 kW | 1 PH | 15 lb | 341-5118 Btu | |
| DFMH | DFMH Fixed Bulkhead Mounted Heater | 110-480 VAC | 0.5-2.0 kW | 1 PH 3 PH | 20 lb | 341-6824 Btu | |
| DFML | DFML Fixed Bulkhead Mounted Heater | 110-220 VAC | 1.0-2.0 kW | 1 PH | 35 lb | 3412-6824 Btu | |
| DFMLH | DFMLH Fixed Bulkhead Mounted Heater | 110-480 VAC | 1.5-3.0 kW | 1 PH 3 PH | 40 lb | 5118-10236 Btu | |
| TNM | TNM Turret Heater | 110-480 VAC 110-480 VDC | 0.5-1.0 kW | 1 PH 3 PH | 0.50 kW: 7.5 lb 1.0 kW: 8 lb | 1706-3412 Btu | |
| RTNM | RTNM Turret Heater | 110-480 VAC | 0.5-1.0 kW | 1 PH 3 PH | 0.50 kW: 7.5 lb 1.0 kW: 8 lb | 1706-3412 Btu | |
| DP | D-Portable Heater | 110-480 VAC VDC Available | 0.5-2.0 kW | 1 PH 3 PH | N/A | 1706-6824 Btu | |
